Eric Kirwin, Industrial Designer
2020

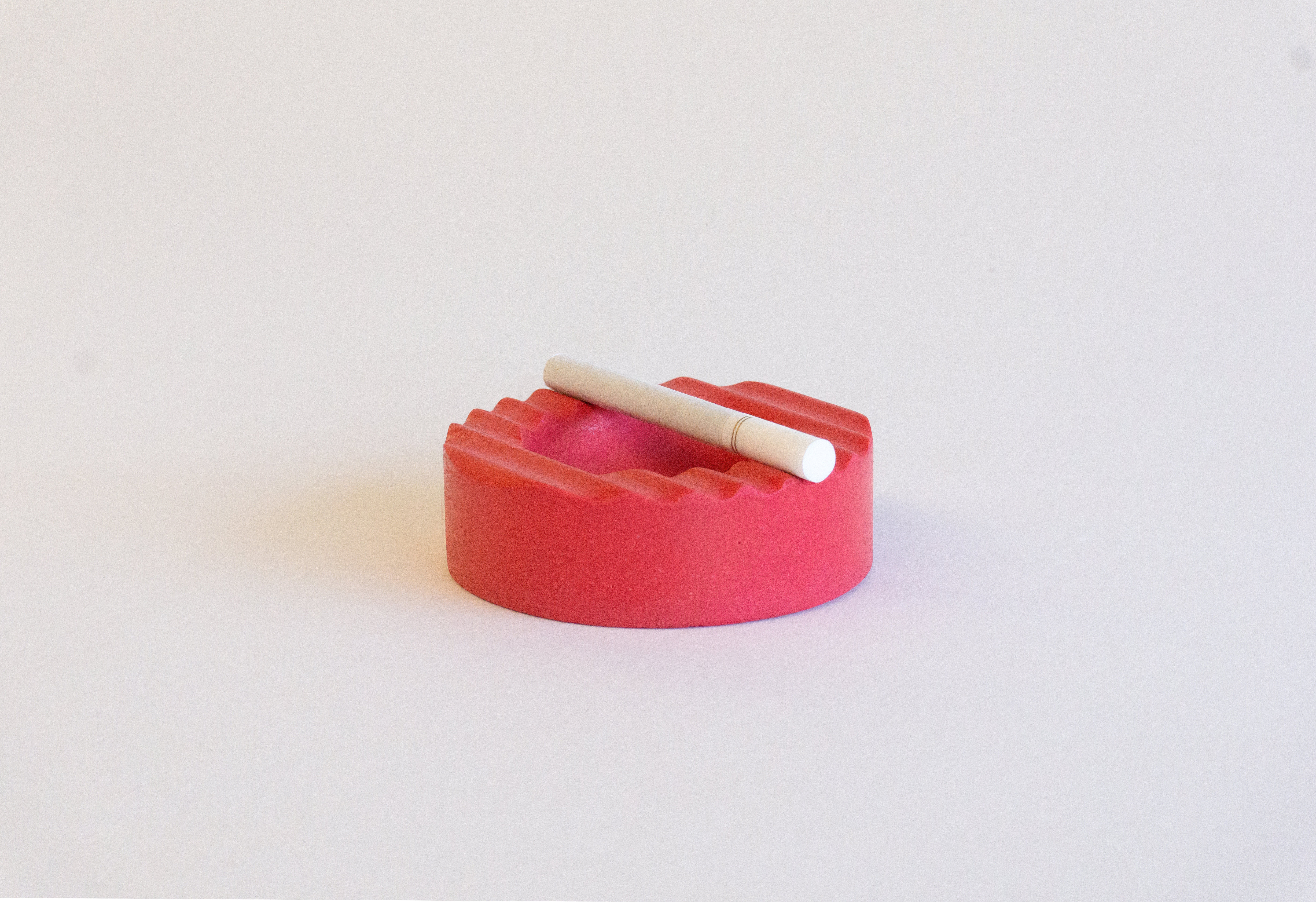

Balance Ashtray

Simple and fun. The intention is to incorporate personality into a smoking accessory, an object that is typically disregarded.

The texture on top provides a surface to rest, designed to hold a few cigarettes at a time. The Balance Ashtray is made from a durable and washable urethane plastic that can be dyed a multitide of different colours.
Materials

Urethane Plastic

Processes

CNC Machining
Vacuum Forming
Mold Making





















Freshly CNC’d master for mold making. With the proper toolpathing I was able to get a very crisp texture directly off the CNC.  The material seen is a high density foam, perfect for vacuum forming.

Getting the right amount of detail and dimensional accuracy was important, any imperfections would show up in the final product.

Vacuum forming the master provides a quick and cheap alternative to silicone or fiberglass mold making. Once vacuum formed, the urethane plastic could be poured and allowed to cure in the mold.
